LA CHINE Machine de remplissage de boissons fabricant

Machines Cie., Ltd de Sunswell.

Machines d'embouteillage pour l'eau, le jus, les boissons carbonatées, le lait et le pétrole avec 12 ans d'expérience du marché global et de présence de plus de 50 pays.

French
Demandez une citation
Produits

Fully Automated Plastic Bottle Water Filling Machine System

Fully Automated Plastic Bottle Water Filling Machine System
Fully Automated Plastic Bottle Water Filling Machine System
Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System Fully Automated Plastic Bottle Water Filling Machine System
Informations de base
Lieu d'origine: Chine
Nom de marque: sunswell
Certification: ce
Numéro de modèle: ssw
Quantité de commande min: 1SET
Prix: 12000-120000
Délai de livraison: 90 jours
Conditions de paiement: LC, D/A, D/P, T/T
meilleur prix Contactez
Nom de machines: Mac de scellage de remplissage d'embouteillage d'eau minérale en bouteille Application: Eau d’embouteillage et de conditionnement
Structure de la machine: Rinceuse, Remplisseuse, Boucheuse 3 en 1 Monobloc Matériel: Acier inoxydable 304, 316L disponible
Emballage du produit: Bouteille en plastique, bouteille pour animaux de compagnie, bouteille en aluminium, verre Fonction: Rinçage Remplissage Capper Rinçage Remplissage Capper
Volume de la bouteille: 200 ml-2200 ml Capacité: 5000-40000bouteilles par heure
Précision de remplissage: 0,5%

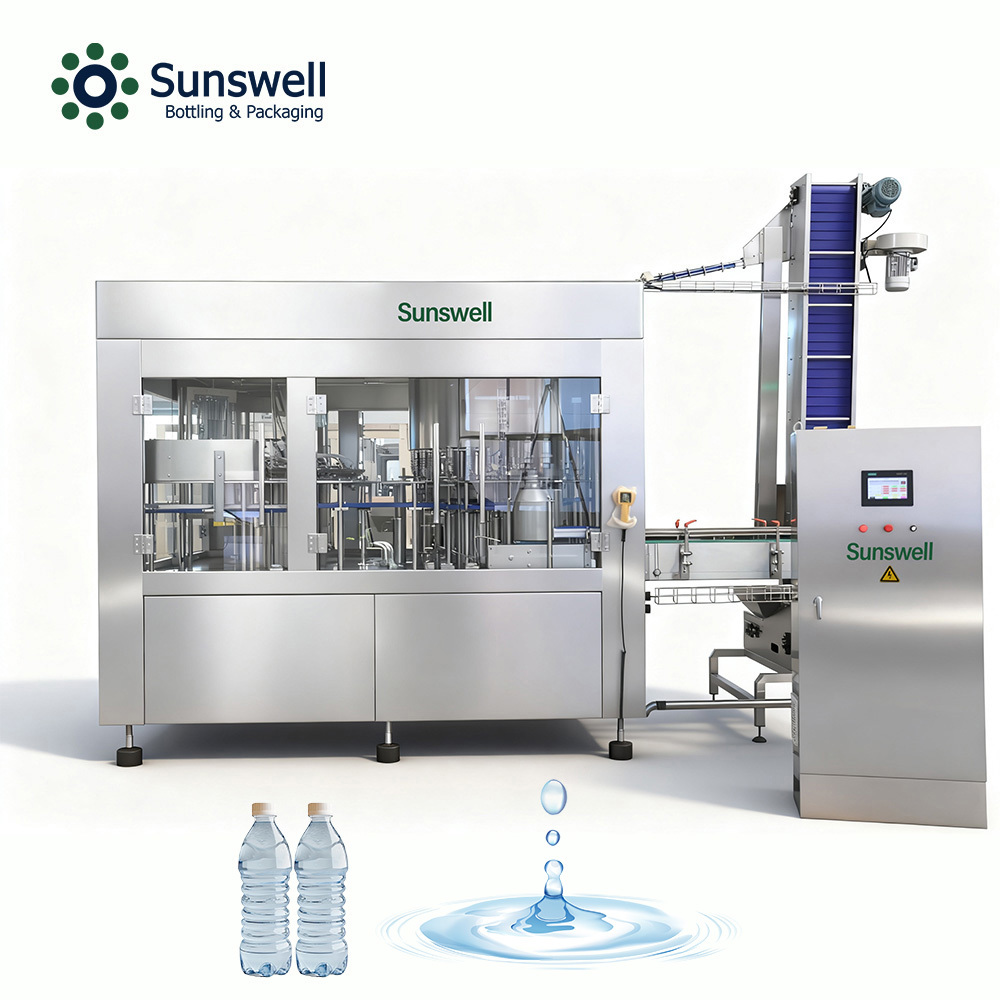

Fully Automated Plastic Bottle Water Filling Machine System

Description:
3 in 1 monoblock bottle water making machine can be applied to the production of mineral water, purified water, flavor water and low alcoholic drinks, etc.The water filler machine can be used for different water filling line.
The whole machine is mainly composed of rinser, filler and capper.

Fully Automated Plastic Bottle Water Filling Machine System 0

Fully Automated Plastic Bottle Water Filling Machine System 1

Model
CGF12125
CGF18186
CGF24248
CGF323210
CGF404012
CGF505012
washing, filling and capping heads
12-12-5
18-18-6
24-24-8
32-32-10
40-40-12
50-50-12
Production capacity(600ml)

(B/H)
2000-4000
5000-7000
8000-12000
12000-15000
16000-20000
20000-24000
Motor power(kw)
2.2kw
2.2kw
3kw
5.5kw
7.5kw
11kw
Weight (kg)
2500
3500
4500






Main features:

Fully Automated Plastic Bottle Water Filling Machine System 2

The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Fully Automated Plastic Bottle Water Filling Machine System 3
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Fully Automated Plastic Bottle Water Filling Machine System 4
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Fully Automated Plastic Bottle Water Filling Machine System 5
The rotary wheel is a fully sus304 stainless steel welded structure.
The machine applies unique overturning bottle clamp, which is an innovation of our company.This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp.Made of sus304 stainless steel, this bottle clamp is hygienic and durable.
The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
All sliding bushes of lifting device use igus (germany) anti-corrosion maintenance free bearing.
The rinser is driven by driving system positioned inside machine frame via gear transmission.
Transfer starwheel
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.
Fully Automated Plastic Bottle Water Filling Machine System 6
FAQ:
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.


Any more questions, pls feel free to contact me !
